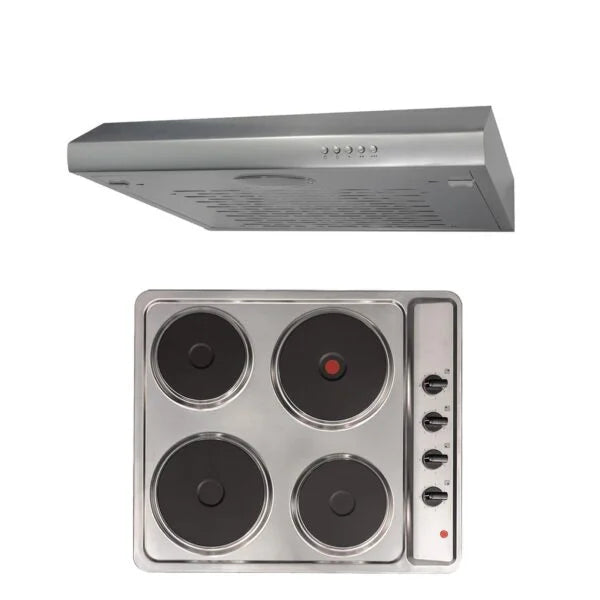

The PHP601SS-STH60SS package consists of a 60cm 4 Zone Electric Hob and a slimline visor cooker hood, both finished in brushed stainless steel. With features such as 4 cooking zones of 2 different sizes, side mounted controls and 6 power levels, the hob has everything you need to cook your meals effortlessly. The cooker hood is small in design but powerful, helping you to keep your kitchen clean and fresh whilst maintaining a minimalist look.

The STH60SS is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

These products boasts a 5 Years Parts & 2 Years Labour Guarantee* to give you the reassurance you need when buying a new appliance.

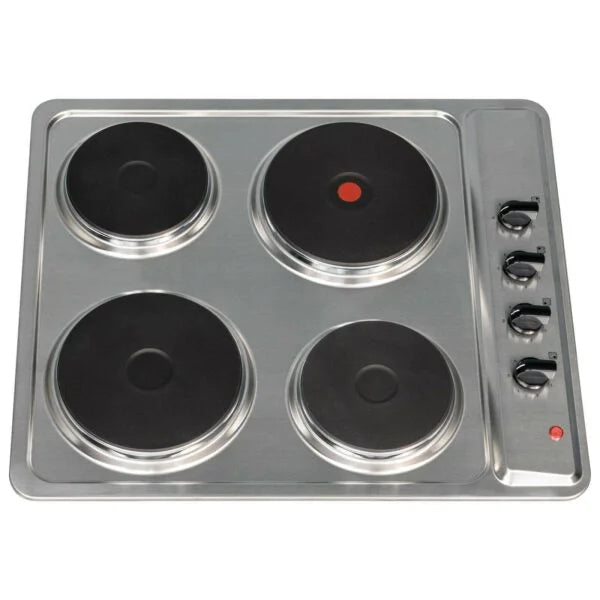

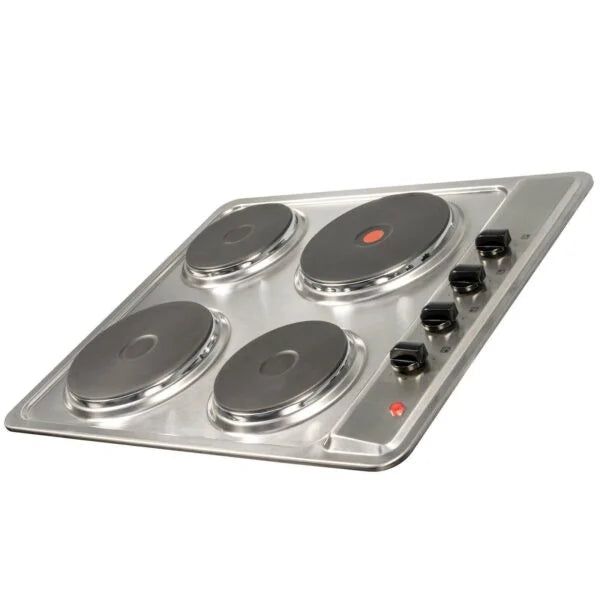

SIA PHP601SS - 60cm 4 Zone Electric Hob / Solid Plate , Stainless Steel

Features

6 heat settings

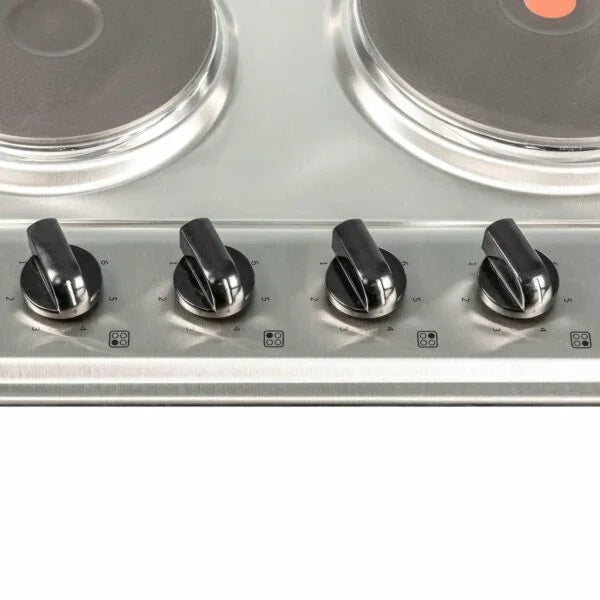

Side dial controls
Easy wipe clean surface

Cooking Zones

Front left zone size (mm): 185 | zone power (kW): 1.5
Rear left zone size (mm): 145 | zone power (kW): 1.0
Front right zone size (mm): 145 | zone power (kW): 1.0
Rear right zone size (mm): 185 | zone power (kW): 2.0

Technical Details

Nominal power (kW): 5.5
Fuse rating (A): 25

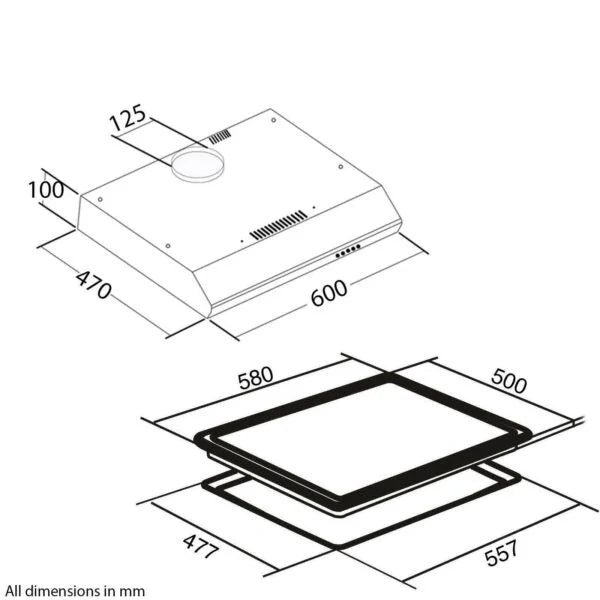

Product dimensions (mm): W580 x D500 x H76
Cut-out dimensions (mm): W557 x D477
Net / gross weight (kg): 8.0 / 9.5
Please note this appliance does not come with a plug or cable and must be hardwired by a qualified electrician

SIA STH60SS 60cm Stainless Steel Slimline Visor Cooker Hood Kitchen Extractor

Features

3 variable speeds
Push button controls
1 x 4W LED lamp
Single fan motor
Ducted or re-circulated installation
Acrylic filter

Optional Accessories

CO6 re-circulation charcoal filters available from our store
D1 & D3 external ducting kits available from our store

Fitting Notes

Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over electric hob (mm): 650

Technical Specifications

Ducting outlet diameter (mm): 125
Extraction rate (m³/hr): 250
Noise level (dBa): 65
Fuse rating (A): 3
Product dimensions (mm): W600 x D470 x H100
Net / gross weight (kg): 4.8 / 5.6
Power (W): 68
Mains lead length (m): 1

Single Units of this Pack

1. 60cm Stainless Steel Kitchen Extractor Fan / Visor Cooker Hood - SIA STH60SS
2. 60cm 4 Zone Electric Hob / Solid Plate , Stainless Steel - SIA PHP601SS

Please note that there is no plug supplied with this product.
*Guarantee subject to Online Registration within 30 days of purchase.
