Product Description

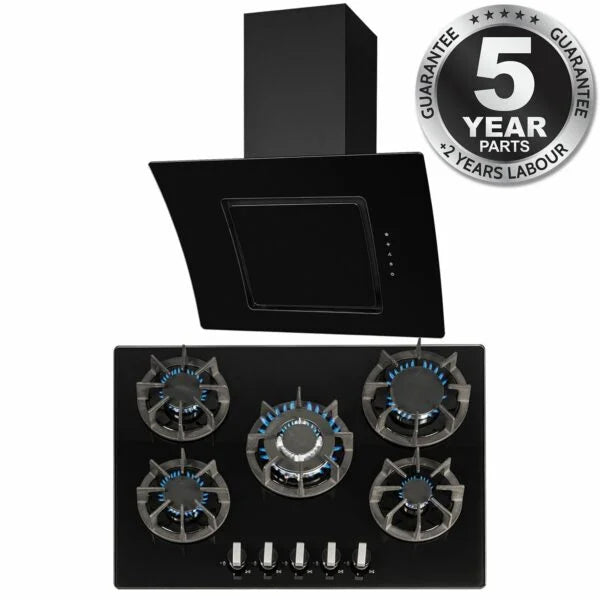

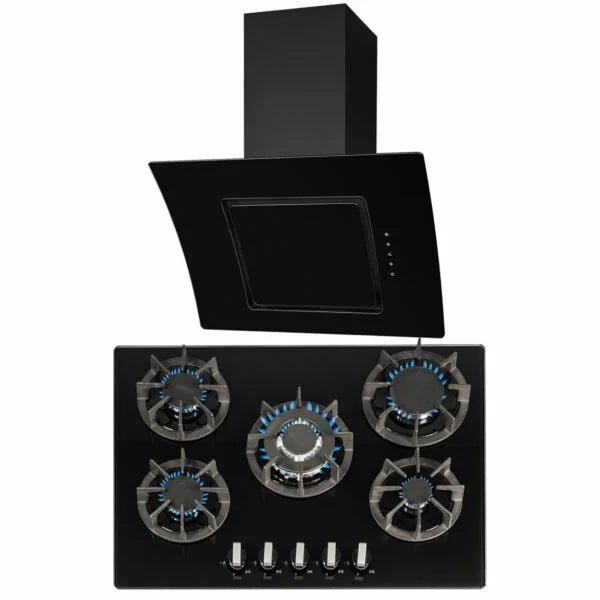

SIA 70cm Black 5 Burner Gas Hob & Angled Curved Glass Cooker Hood Fan

The SIA 70cm Black 5 Burner Gas Hob & Angled Curved Glass Cooker Hood Fan. The R8 features removable cast iron supports that have extra prongs to support your pans and the AT71BL has an elegant design with modern touch control functionality.

The R8 features a flame failure safety device (FFD), which stops the flow of gas when a flame goes out, preventing gas leaks. The LPG conversion kit is a set of small brass jets that allow you to convert the hob to use bottled butane or propane, if you do not have access to a natural gas connection.

The AT71BL is the perfect choice for those with little headroom. The sloped design and shallower depth mean they do not protrude from the wall as much as other cooker hoods. This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

These products come with a 5 Years Parts & 2 Years Labour Guarantee* to give you the reassurance you need when buying a new appliance.

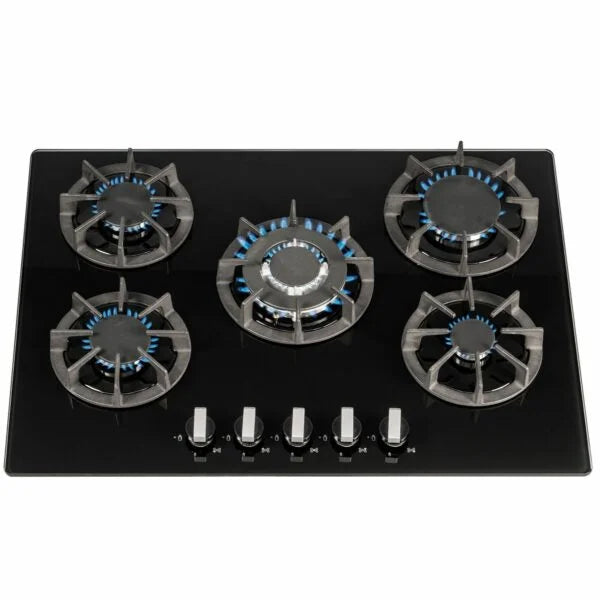

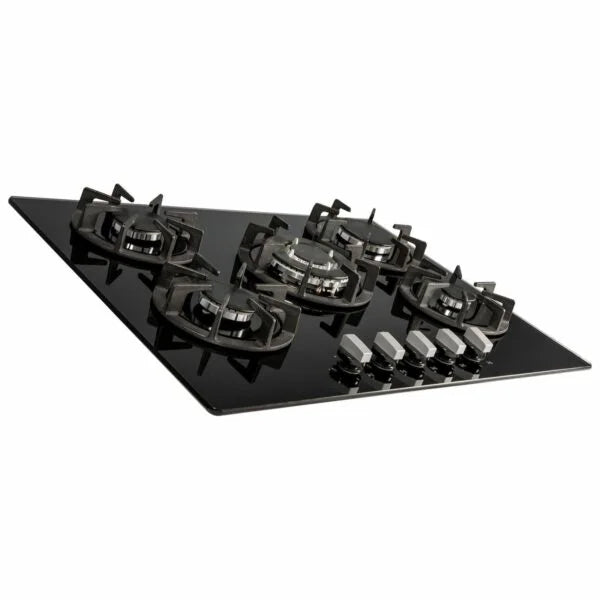

SIA R8 70cm Black 5 Burner Gas Hob With Cast Iron Pan Stands

Features

Front dial controls
Heavy-duty cast iron pan stands & burner caps
Flame failure safety device
LPG conversion kit included
Easy clean glass surface
Automatic ignition

Burners

Front left burner – semi-rapid (kW): 1.75
Rear left burner – semi-rapid (kW): 1.75
Front right burner – auxiliary (kW): 1.0
Rear right burner – rapid (kW): 3.0
Centre burner – triple flame (kW): 3.8

Technical Specifications

Nominal power (kW): 11.3
Fuse rating (A): 3
Product dimensions (mm): W700 x D510
Cut-out dimensions (mm): W557 x D477
Net / gross weight (kg): 14.7 / 16.7
Mains lead length (m): 1
Gas inlet: ½ inch male threaded connection
Please note this appliance must be installed by a Gas Safe engineer.

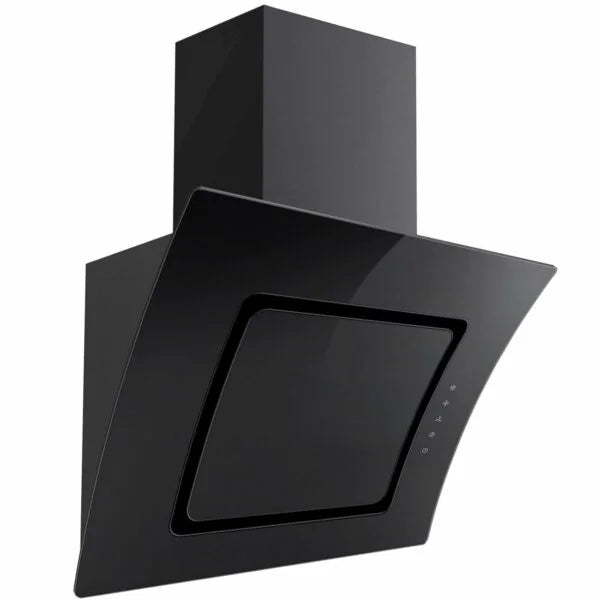

SIA 70cm Black Touch Control Angled Curved Glass Cooker Hood Kitchen Extractor

Features

3 variable speeds
Soft touch controls

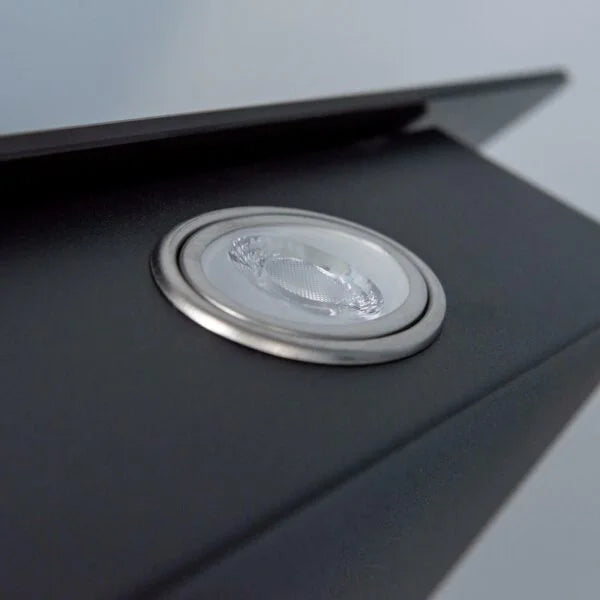

2 x 1W LED lights
Single fan motor
Ducted or re-circulating installation
1 x dishwasher safe aluminium grease filter
2 x telescopic chimney sections
Timer mode – can run for 15 minutes after cooking with auto turn off
Black curved glass

Optional Accessories

SIA2 charcoal filter for re-circulation available on our store
D1 & D3 external ducting kits available on our store

Fitting Notes

Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750

Technical Specification

Ducting outlet diameter (mm): 125
Extraction rate (m³/hr): 550
Noise level (dBa): 66
Fuse rating (A): 3
Product dimensions (mm): W700 x D340 x H806-1106
Height of chimney sections (mm): 400 + 330
Net / gross weight (kg): 15.0 / 16.8
Power (W): 112
Mains lead length (m): 1

Single Units of this Pack

1. Black 70cm Angled Glass Cooker Hood Extractor Fan- SIA AT71BL
2. 70 cm Black Glass 5 Burner Gas Hob with Cast Iron Pan Stands – SIA R8

Please note that there is no plug supplied with this product.
*Guarantee subject to Online Registration within 30 days of purchase.
