Product Description

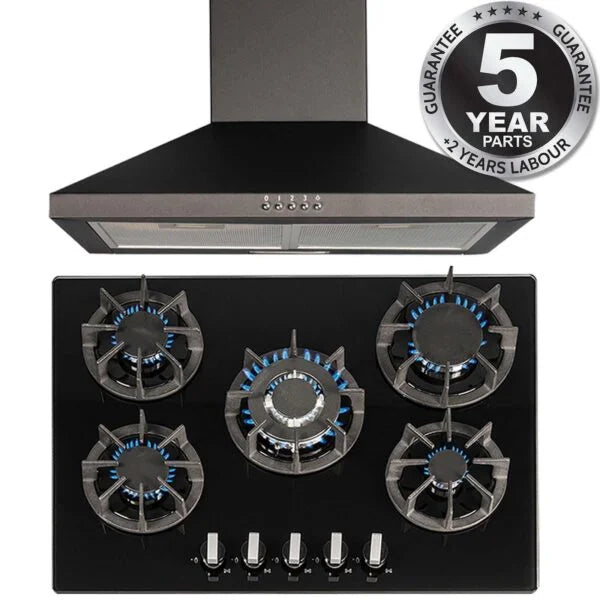

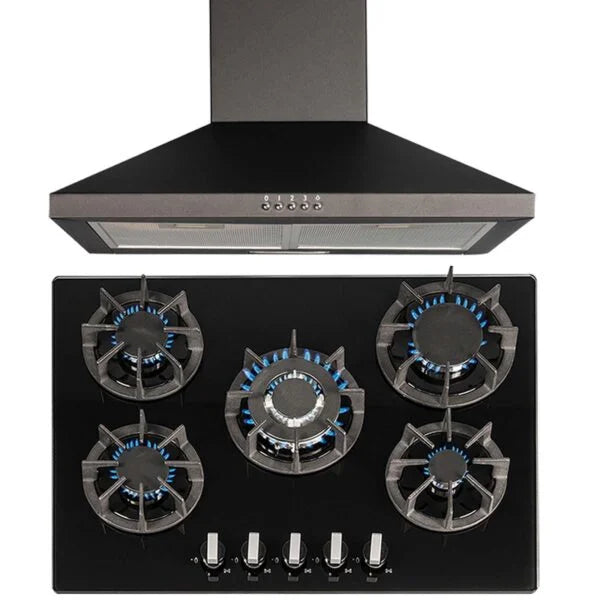

SIA 70cm Black Glass 5 Burner Gas Hob With Cast Iron Supports & Chimney Cooker Hood

It will blend in with any kitchens décor and add a modern twist to your kitchen. This 70cm 5 burner gas hob equips you with fantastic features to make your cooking experience fun and above all, safe.With 3-speed settings, a removable grease filter and a LED downlight this simplistic hood is perfect for any kitchen.

This product features a flame failure safety device (FFD), which stops the flow of gas when a flame goes out, preventing gas leaks. The LPG conversion kit is a set of small brass jets that allow you to convert the hob to use bottled butane or propane, if you do not have access to a natural gas connection.

This chimney cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

Guarantee

These products boasts a 5 Year Parts & 2 Year Labour Guarantee* to give you the reassurance you need when buying a new appliance.

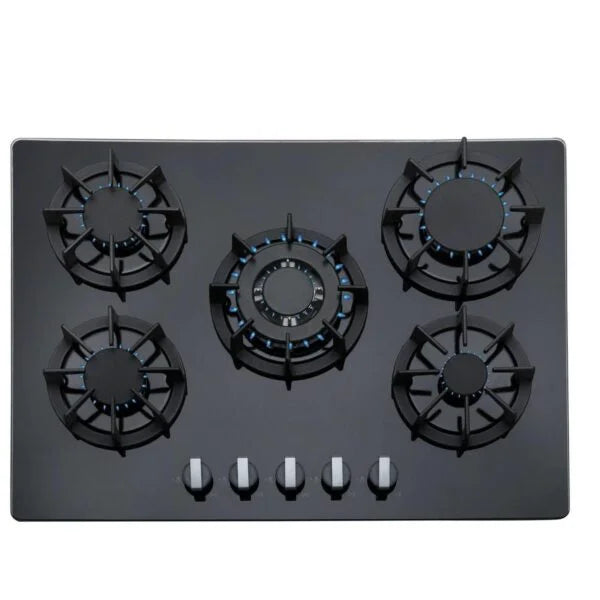

SIA R8 70cm Black Glass 5 Burner Gas Hob With Cast Iron Pan Stands

Features

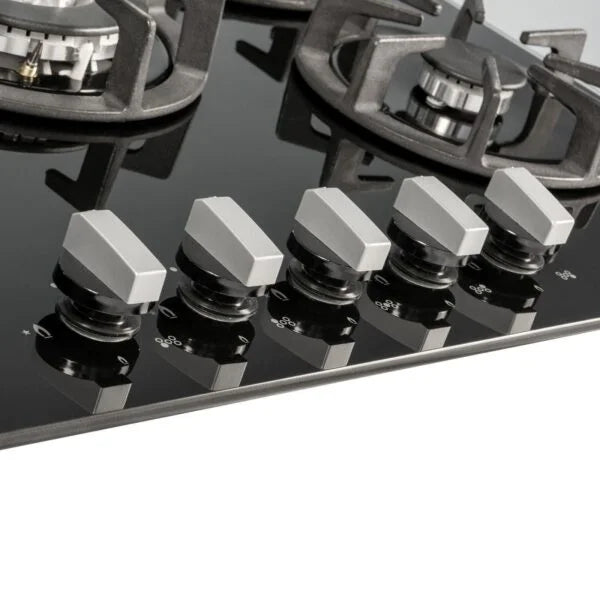

Front dial controls
Heavy-duty cast iron pan stands & burner caps
Flame failure safety device
LPG conversion kit included
Easy clean glass surface
Automatic ignition

Burners

Front left burner – semi-rapid (kW): 1.75
Rear left burner – semi-rapid (kW): 1.75
Front right burner – auxiliary (kW): 1.0
Rear right burner – rapid (kW): 3.0
Centre burner – triple flame wok burner (kW): 3.8

Technical Specifications

Nominal power (kW): 11.3
Fuse rating (A): 3

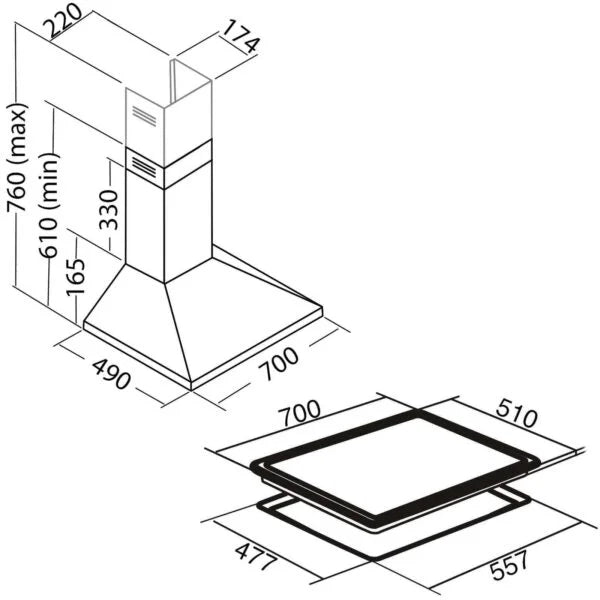

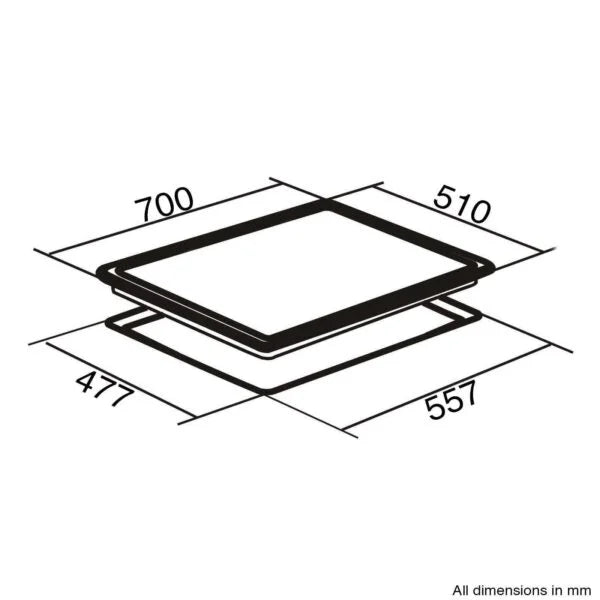

Product dimensions (mm): W700 x D510
Cut-out dimensions (mm): W557 x D477
Net / gross weight (kg): 14.7 / 16.7
Mains lead length (m): 1
Gas inlet: ½ inch male threaded connection
Please note this appliance must be installed by a Gas Safe engineer.

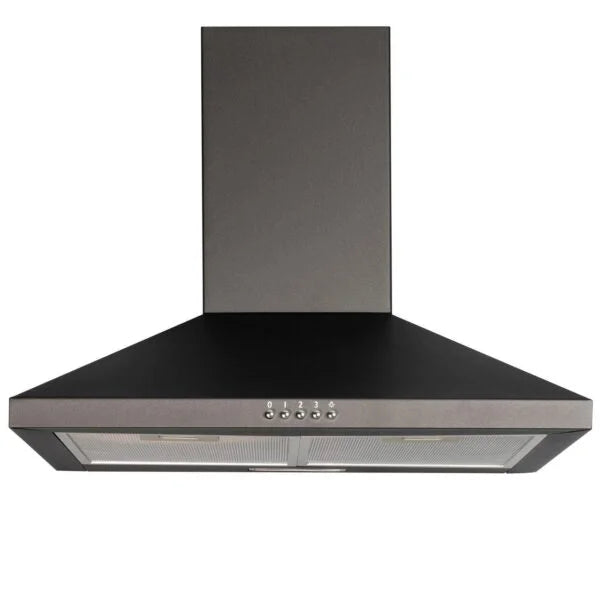

SIA CHL70BL 70cm Chimney Cooker Hood Kitchen Extractor Fan in Black

Features

3 variable speeds

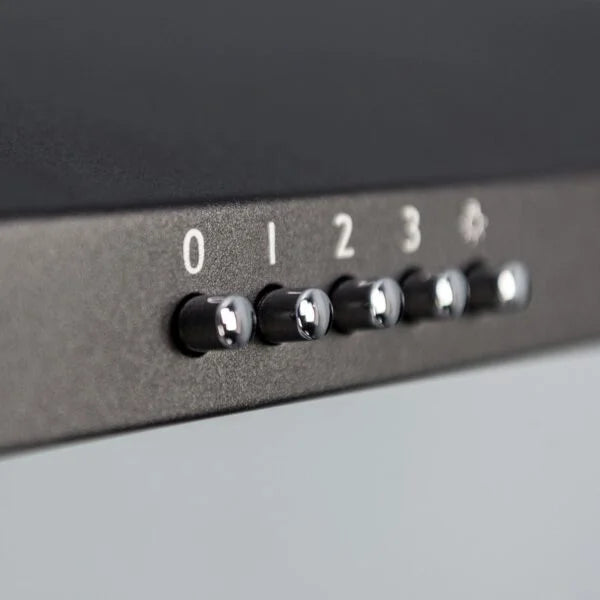

Push button controls
1 x 1.5W LED light
Single fan motor
Ducted or re-circulated installation
2 x dishwasher safe aluminium grease filters
2 x telescopic chimney sections

Optional Accessories

SIA2 re-circulation filters available to buy from our store
D5 & D7 external ducting kits available to buy from our store

Fitting Notes

Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Required height over electric hob (mm): 650
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.

Technical Specifications

Ducting outlet diameter (mm): 150
Extraction rate (m³/hr): 400
Noise level (dBa): 66
Fuse rating (A): 3
Product dimensions (mm): W700 x D490 x H610-760
Height of chimney sections (mm): 330 + 330
Net / gross weight (kg): 11.5 / 14.5
Power (W): 26.5
Mains lead length (m): 1

Single Units of this Pack

70 cm Black Glass 5 Burner Gas Hob with Cast Iron Pan Stands - SIA R8

Please note that there is no plug supplied with this product.
*Guarantee subject to Online Registration within 30 days of purchase.
